5 - Loop Antenna Empirical Data
|
- The data below was compiled from testing several small loop antenna using an MFJ-259 antenna analyzer.
- The antenna analyzer was set for the approximate middle of the 20 meter and 40 meter HF voice bands.
- The loop antenna was tuned by means of a variable capacitor until the SWR was at or near minimum and the reactive(Z) and resistive(R) impedances were recorded.
- The frequency of the analyzer was varied in steps of 10 or 20 kHz and the SWR, Z and R values were recorded while leaving the loop tuning unchanged.
- Note that with enough capacitance added, the 62 inch loop was able to be tuned for low SWR levels (1.1) at both the 20 and 40 meter bands.
- Despite the small size of these loop antenna, many DX contacts were established with Europe and South America. A small sampling is listed below.
|
1.125" Tubing x 35" Diameter Loop @ 20m (phone band only) Antenna Analyzer Data
|
Frequency (MHz)
|
14.150
|
14.160
|
14.170
|
14.180
|
14.190
|
14.200
|
14.210
|
14.220
|
14.230
|
14.240
|
14.250
|
14.260
|
14.270
|
14.280
|
14.290
|
14.300
|
14.310
|
14.320
|
14.330
|
14.340
|
14.350
|
|
SWR
|
4.5
|
4.4
|
4.3
|
4.2
|
4.0
|
3.7
|
3.2
|
2.7
|
2.0
|
1.4
|
1.1
|
1.5
|
2.0
|
2.4
|
2.9
|
3.2
|
3.5
|
3.8
|
4.0
|
4.1
|
4.2
|
|
Reactive Impedance
|
97
|
99
|
101
|
102
|
99
|
87
|
46
|
0
|
0
|
0
|
0
|
16
|
26
|
36
|
44
|
34
|
33
|
34
|
35
|
37
|
38
|
|
Resistive Impedance
|
64
|
71
|
80
|
95
|
112
|
132
|
153
|
146
|
110
|
75
|
53
|
41
|
37
|
35
|
34
|
50
|
58
|
62
|
67
|
70
|
73
|

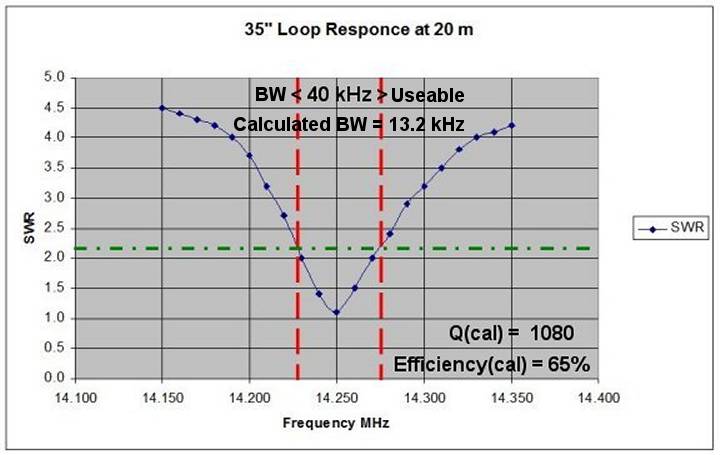

35" Loop Responce @ 20 meters
Enlarge
|
Note that at this size:
- Efficiency = 65%
- Q = 1080
- Calculated BW = 13.2kHz
- Useable BW = 40kHz
|
1.125" Tubing x 62" Diameter Loop @ 20m (voice band only) Antenna Analyzer Data
|
Frequency (MHz)
|
14.150
|
14.160
|
14.170
|
14.180
|
14.190
|
14.200
|
14.210
|
14.220
|
14.230
|
14.240
|
14.250
|
14.260
|
14.270
|
14.280
|
14.290
|
14.300
|
14.310
|
14.320
|
14.330
|
14.340
|
14.350
|
|
SWR
|
4.4
|
4.2
|
4.0
|
3.7
|
3.4
|
3.0
|
2.6
|
2.2
|
1.8
|
1.4
|
1.1
|
1.2
|
1.5
|
1.8
|
2.2
|
2.6
|
2.9
|
3.2
|
3.5
|
3.8
|
4.0
|
|
Reactive Impedance
|
NA
|
100
|
NA
|
NA
|
NA
|
0
|
NA
|
28
|
24
|
15
|
1
|
9
|
15
|
24
|
NA
|
37
|
NA
|
53
|
NA
|
3.8
|
NA
|
|
Resistive Impedance
|
NA
|
176
|
NA
|
NA
|
NA
|
169
|
NA
|
107
|
82
|
64
|
49
|
42
|
39
|
37
|
NA
|
35
|
NA
|
36
|
NA
|
38
|
NA
|

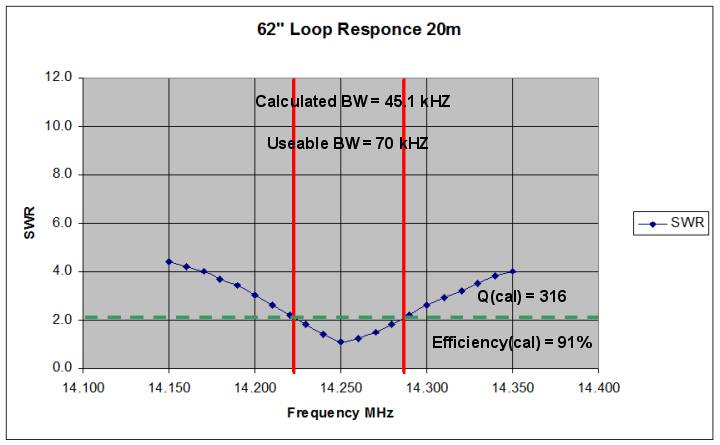

62" Loop Responce @ 20 meters
Enlarge
|
Note that at this size:
- Efficiency = 91%
- Q = 316
- Calculated BW = 45.5kHz
- Useable BW = 70kHz
|
1.125" Tubing x 62" Diameter Loop @ 40m (voice band only) Antenna Analyzer Data
|
Frequency (MHz)
|
7.125
|
7.140
|
7.160
|
7.180
|
7.200
|
7.217
|
7.230
|
7.250
|
7.270
|
7.290
|
7.310
|
7.330
|
7.350
|
|
SWR
|
7.0
|
5.8
|
4.0
|
2.6
|
1.5
|
1.1
|
1.5
|
2.7
|
4.0
|
5.6
|
7.7
|
9.1
|
10.5
|
|
Reactive Impedance
|
43
|
38
|
31
|
21
|
8
|
6
|
0
|
50
|
91
|
114
|
109
|
99
|
91
|
|
Resistive Impedance
|
10
|
12
|
15
|
22
|
33
|
54
|
81
|
117
|
106
|
57
|
34
|
21
|
15
|
Enlarge
|
Note that at this size:
- Efficiency = 48%
- Q = 1,292
- Calculated BW = 5.5kHz
- Useable BW = 45kHz
|
Did These Antennas Perform?
Yes They Did!

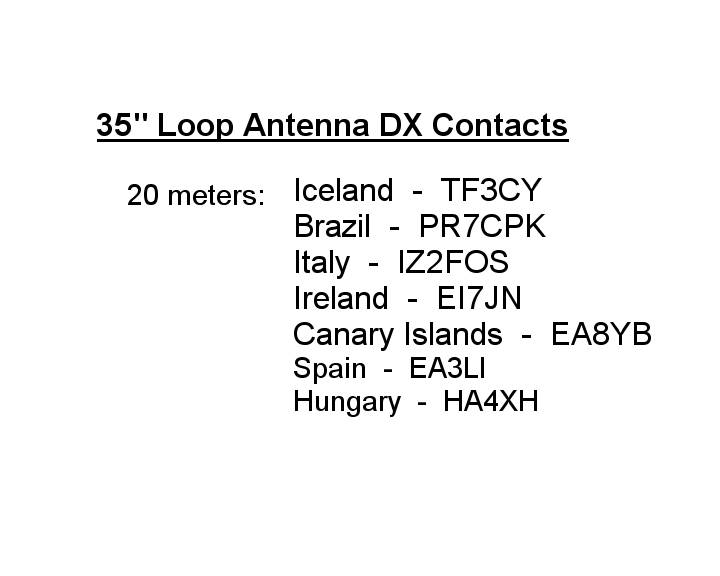

Sampling of SSB Contacts on 35 inch loop:
|
|

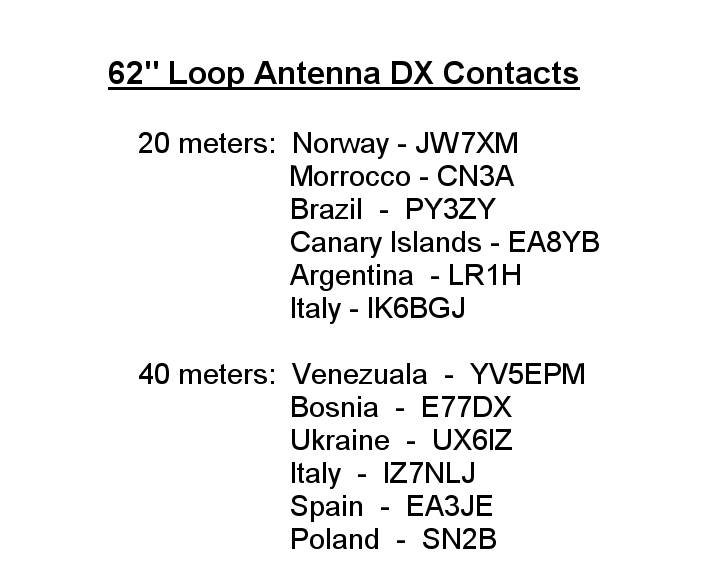

Sampling of SSB Contacts on 62 inch loop:
|

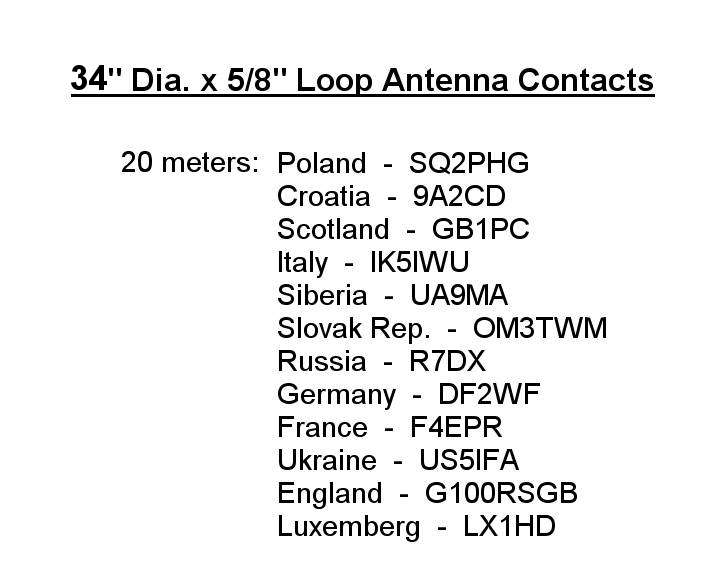

Even a relatively small 5/8" tubing loop antenna 34" in diameter got out!
|
|
|
|
|
